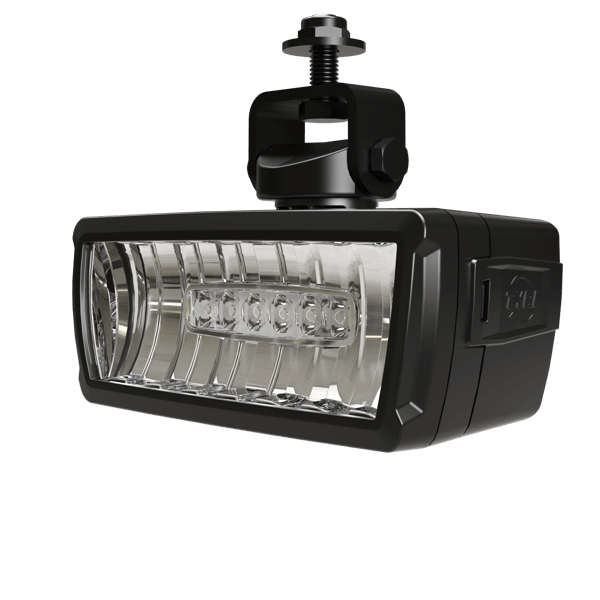

TYRI 0717 LED work light product image with light off, showing compact modern housing design and durable mounting bracket for off-road and industrial vehicles.

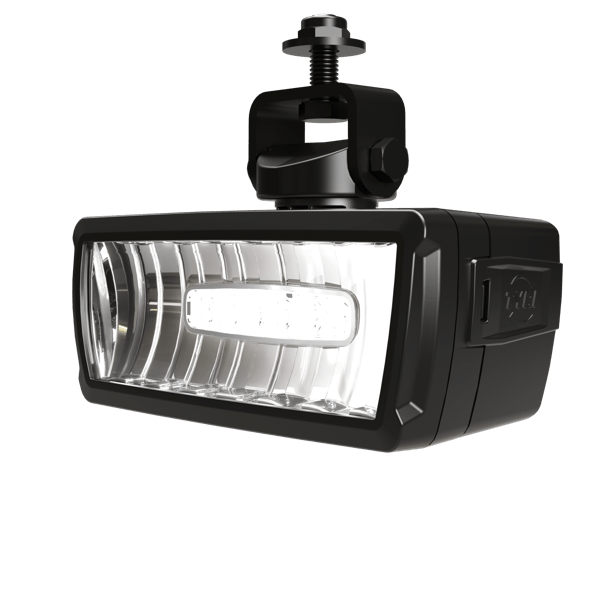

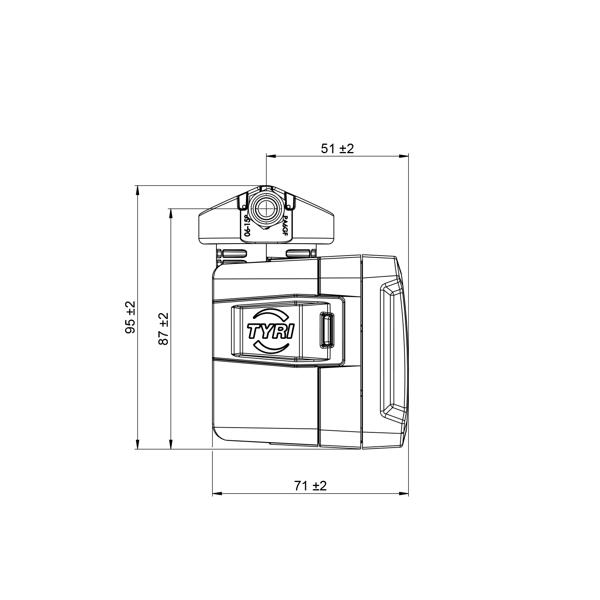

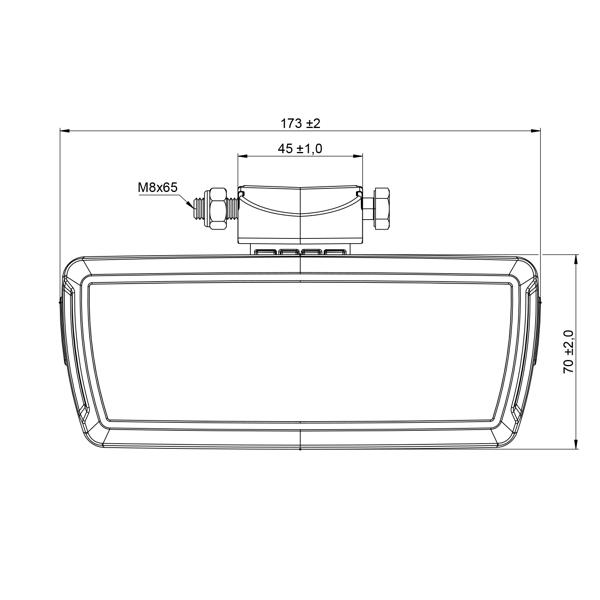

TYRI 0717 LED work light product image with light on, showing compact modern housing design and durable mounting bracket for off-road and industrial vehicles.Technical front drawing of TYRI 0717 LED work light showing compact housing design, mounting bracket, and dimensions for installation reference.Technical side drawing of TYRI 0717 LED work light showing compact housing design, mounting bracket, and dimensions for installation reference.

0717 G2

kr1.00

SKU: N/A Categories: All products, Work Lights, LED
  • Description
  • Additional Information
  • Product Data Sheet
  • Interested?

Description

The TYRI 0717 G2 compact work light sets a new benchmark for performance in a small format. It builds on the proven 0717 platform, while adding a redesigned housing and advanced optics. As a result, OEMs get higher output, better light control, and longer service life in demanding environments.

The newly engineered housing improves durability and offers a modern, clean design. It protects internal components from vibration, dirt, and harsh weather. At the same time, the compact size simplifies integration on space-restricted vehicles. Therefore, installation becomes easier across multiple machine platforms.

An upgraded optical system delivers a more uniform and efficient light pattern. This reduces glare and improves operator comfort during long work shifts. In addition, the refined beam distribution increases usable light on the work area. This supports safer operation in forestry, agriculture, construction, and material handling.

With 2,800 effective lumen, the 0717 G2 provides bright and precise illumination. Despite the compact footprint, the output supports high productivity during night work. Consequently, operators gain better visibility, which reduces errors and fatigue. TYRI’s in-house testing also ensures consistent quality and compliance with OEM standards.

The 0717 G2 compact work light is designed for global applications and demanding duty cycles. It combines efficiency, durability, and optical precision in one robust solution. For machines operating in harsh outdoor conditions, it is a reliable choice. Explore more solutions for similar environments in our forestry or agriculture lighting solutions range.

Additional information

ECE

R10

Light Source

LED

Mounting

Hanging, Standing, Swivel

Sector

Agriculture, Forestry

UL Certification

No

Download 0717 G2 Product Data Sheet
Download 0717 G2 Product Data Sheet

Interested? Please, contact your local sales team:


Lee Rushton
Business Development Manager
lee.rushton@tyri.co.uk

Interested? Please, contact your local sales team:


Andrea Wiese
Sales Operations Manager
awiese@tyri.us
Let’s connect

Interessado? Por favor, entre em contato com sua equipe de vendas local:


Fabiano Lima
Business Development Manager
flima@tyri.com.br
Let’s connect

Interessiert? Bitte kontaktieren Sie Ihr lokales Vertriebsteam:


Ulrich Frye
Area Sales Manager
ulrich.frye@tyri.se
Verbinden

¿Interesado? Por favor, póngase en contacto con su equipo de ventas local:


Michael Bradley
Head of Sales
michaelbradley@tyri.co.uk

Kiinnostunut? Ole hyvä ja ota yhteyttä paikalliseen myyntitiimiisi:


Anders Wärnman
Senior Sales Manager
anders.warnman@tyri.se
Let’s connect

Interested? Please, contact your local sales team:


Michael Bradley
Head of Sales
michaelbradley@tyri.co.uk

Interessato? Si prega di contattare il proprio team vendite locale:


Luca Belli
Sales and Marketing Director
luca.belli@tyrilights.com
Connetti

興味がありますか? ご自分の地元のセールスチームにお問い合わせください


Jeremy Sanderson
代表取締役/ CEO
jeremy.sanderson@tyri.jp

Interested? Por favor, contacta a tu equipo de ventas local:


Andrea Wiese
Sales Operations Manager
awiese@tyri.us
Contactar

Interessert? Vennligst kontakt ditt lokale salgsteam:


Rikard Forsgard
TYRI Norway / Egil Verne AS
rikard.forsgard@verne.no
Ta kontakt

Intresserad? Vänligen kontakta ditt lokala säljteam:


Johannes Friberg
Key Account Manager TYRI Sweden
johannes.friberg@tyri.se
Let’s connect

Available Options

Effective LumenMachine VoltageAmp Draw 12 VPowerColour TemperatureLens PatternPart no.EMCECE
2800 eLm Short Range12 V2.5 A30 W5700 KShort Range-5R10
