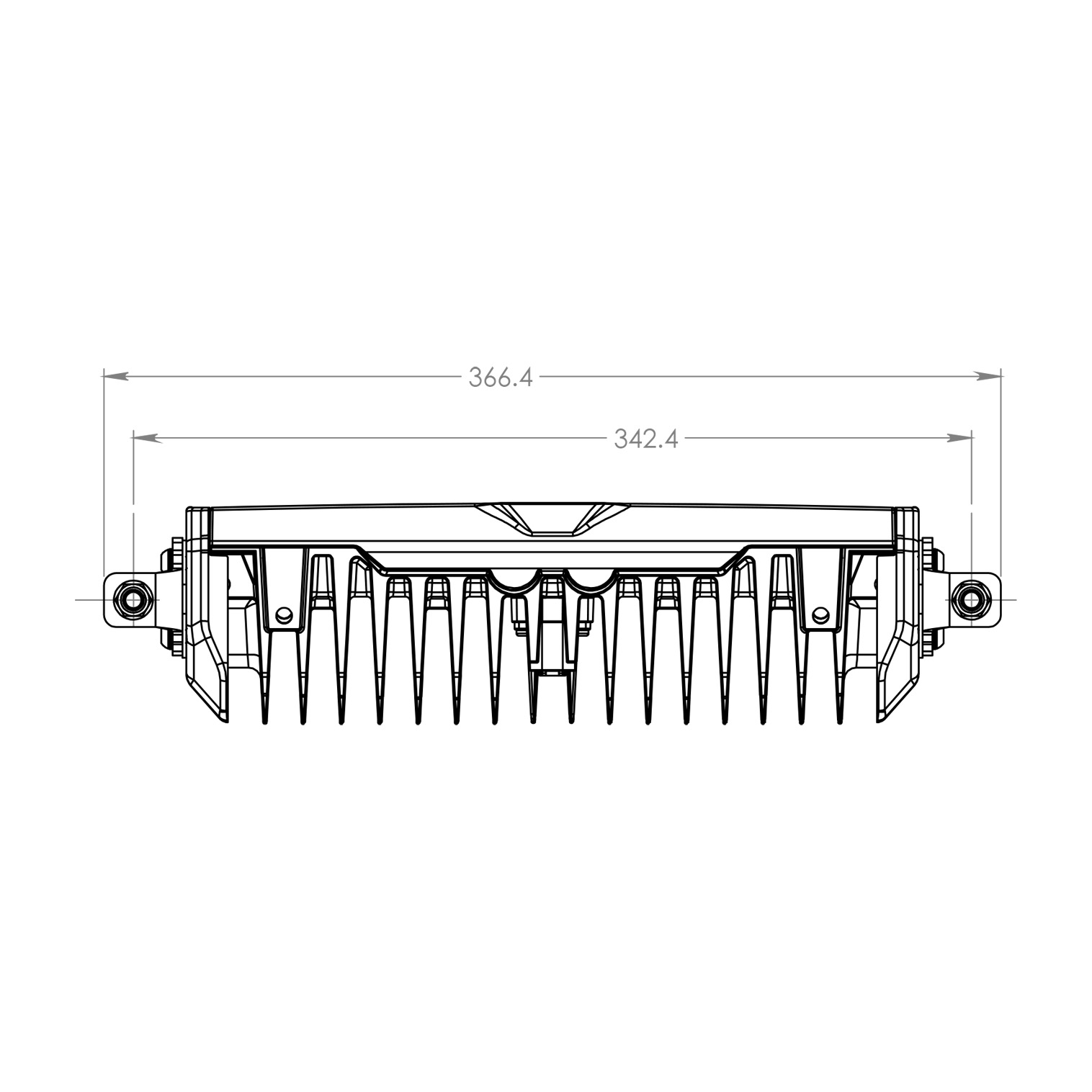

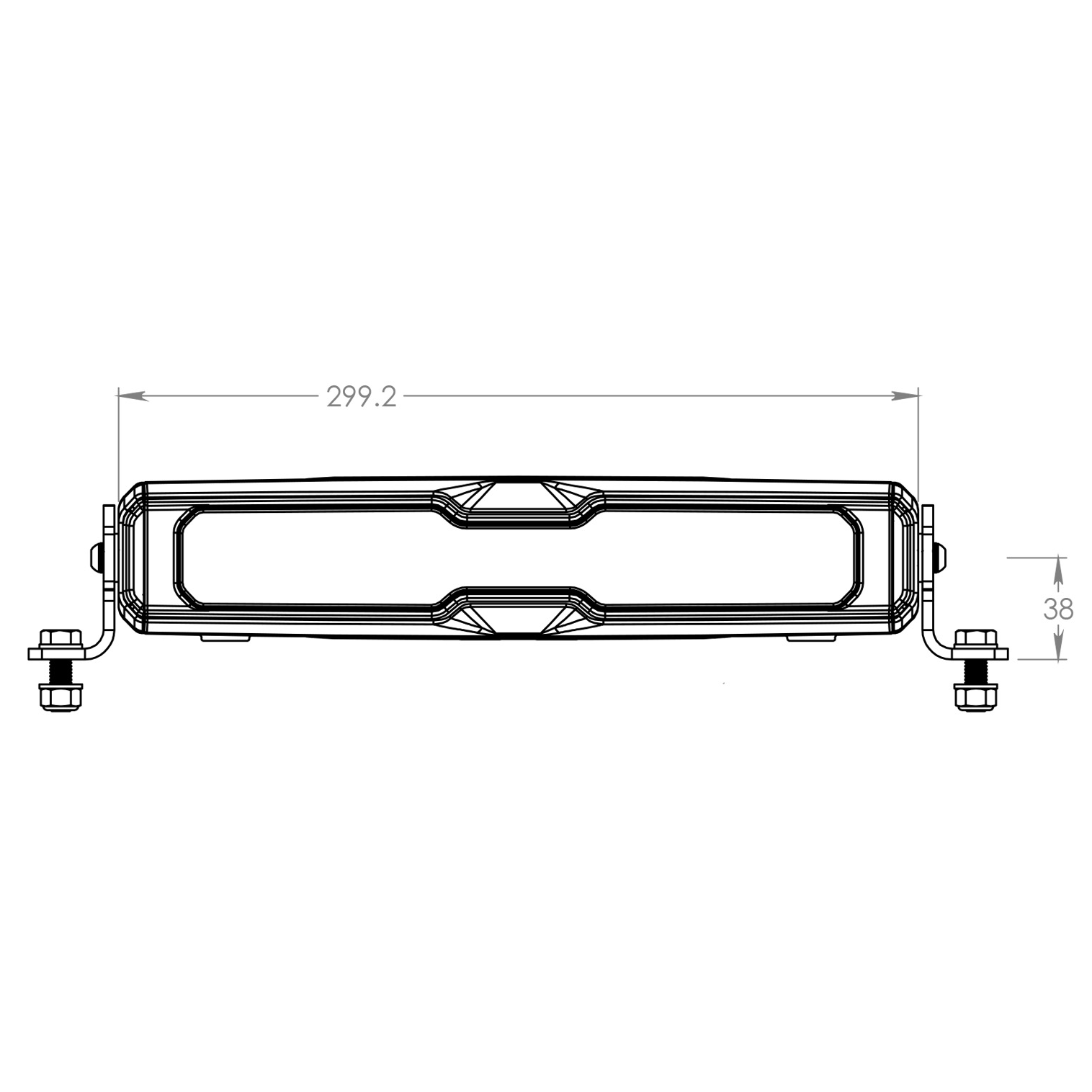

Front-view technical drawing of the TYRI V12 Lightbar, showing detailed dimensions and mounting points for accurate installation.Top-view technical drawing of the TYRI V12 Lightbar, displaying precise measurements and layout for mounting and integration.V12 Lightbar example, Tyri LightbarV12 Lightbar example, Tyri LightbarV12 Lightbar example, Tyri LightbarV12 Lightbar example, Tyri Lightbar

V12 Lightbar

kr1.00

SKU: N/A Categories: All products, Light Bars, LED
  • Description
  • Additional Information
  • Product Data Sheet
  • Interested?

Description

Designed for the off road / 4×4 enthusiast, TYRI’s modular light bar has a slim design and replaceable lens, making it ideal for the off road environment. This light can be bracket or surface mounted and the end pieces are removable for maximum flexibility in mounting options.

Providing 4,300 effective lumen light output, this stylish and powerful unit will light your way to adventure.

Available with yellow lens, black reflector or as a double option.

Suggested application
This Modular Lightbar is highly adaptable and can be used across numerous applications worldwide, including ATV, Off-road, construction, agriculture and mining.

Additional information

Light Source

LED

Mounting

Hanging, Standing, Thru Bolt, Flush

Sector

Agriculture, ATV, Construction, Mining, Municipal Vehicles, Off-Road

UL Certification

No

Download V12 Lightbar Product Data Sheet
Download VL4 BlueLine Product Data Sheet

Interested? Please, contact your local sales team:


Craig Gibbons
craig.gibbons@tyri.co.uk
Let’s connect

Interested? Please, contact your local sales team:


Andrea Wiese
awiese@tyri.us
Let’s connect

Interessado? Por favor, entre em contato com sua equipe de vendas local:


Fabiano Lima
flima@tyri.com.br
Let’s connect

Interessiert? Bitte kontaktieren Sie Ihr lokales Vertriebsteam:


Ulrich Frye
ulrich.frye@tyri.se
Verbinden

¿Interesado? Por favor, póngase en contacto con su equipo de ventas local:


Christopher Parke
christopher.parke@tyri.co.uk
Conectar

Kiinnostunut? Ole hyvä ja ota yhteyttä paikalliseen myyntitiimiisi:


Anders Wärnman
anders.warnman@tyri.se
Let’s connect

Interested? Please, contact your local sales team:


Craig Gibbons
craig.gibbons@tyri.co.uk
Let’s connect

Interessato? Si prega di contattare il proprio team vendite locale:


Luca Belli
luca.belli@tyrilights.com
Connetti

興味がありますか? ご自分の地元のセールスチームにお問い合わせください


Jeremy Sanderson
jeremy.sanderson@tyri.jp

Interested? Por favor, contacta a tu equipo de ventas local:


Andrea Wiese
awiese@tyri.us
Contactar

Interessert? Vennligst kontakt ditt lokale salgsteam:


Rikard Forsgard
rikard.forsgard@verne.no
Ta kontakt

Intresserad? Vänligen kontakta ditt lokala säljteam:


Johannes Friberg
johannes.friberg@tyri.se
Let’s connect

Available Options

Effective LumenMachine VoltageAmp Draw 12 VAmp Draw 24 VPowercolor TemperatureLens PatternReflectorPart no.EMCECE
430012 V5.8 A-70 W5700 KNarrow SymmetricStdV12-003-15R10
430012 V5.8 A-70 W5700 KNarrow SymmetricBlackV12-005-15R10
430012 V5.8 A-70 W5700 KNarrow SymmetricStd/FogV12-007-15R10
430024 V-2.9 A81 W5700 KNarrow SymmetricStdV12-010-15-

You may also like…

  • VL4

    kr1.00
  • VL6

    kr1.00

Related products

  • BASEline R1 Swivel

    kr1.00
  • 1010 Curve

    kr1.00

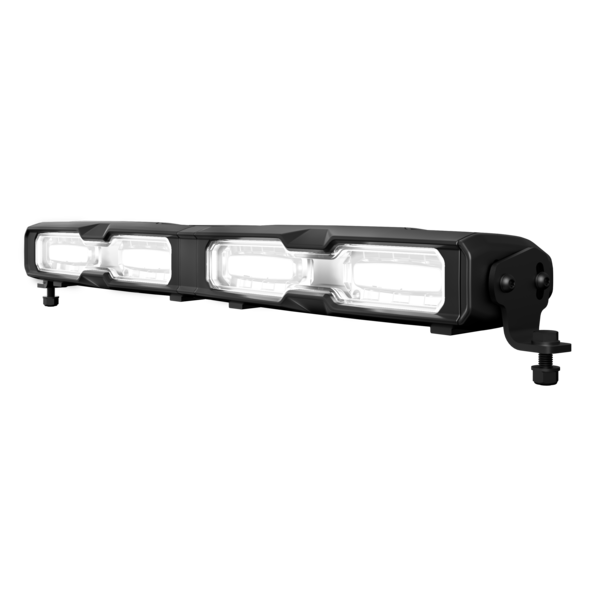

  • V24 Lightbar
